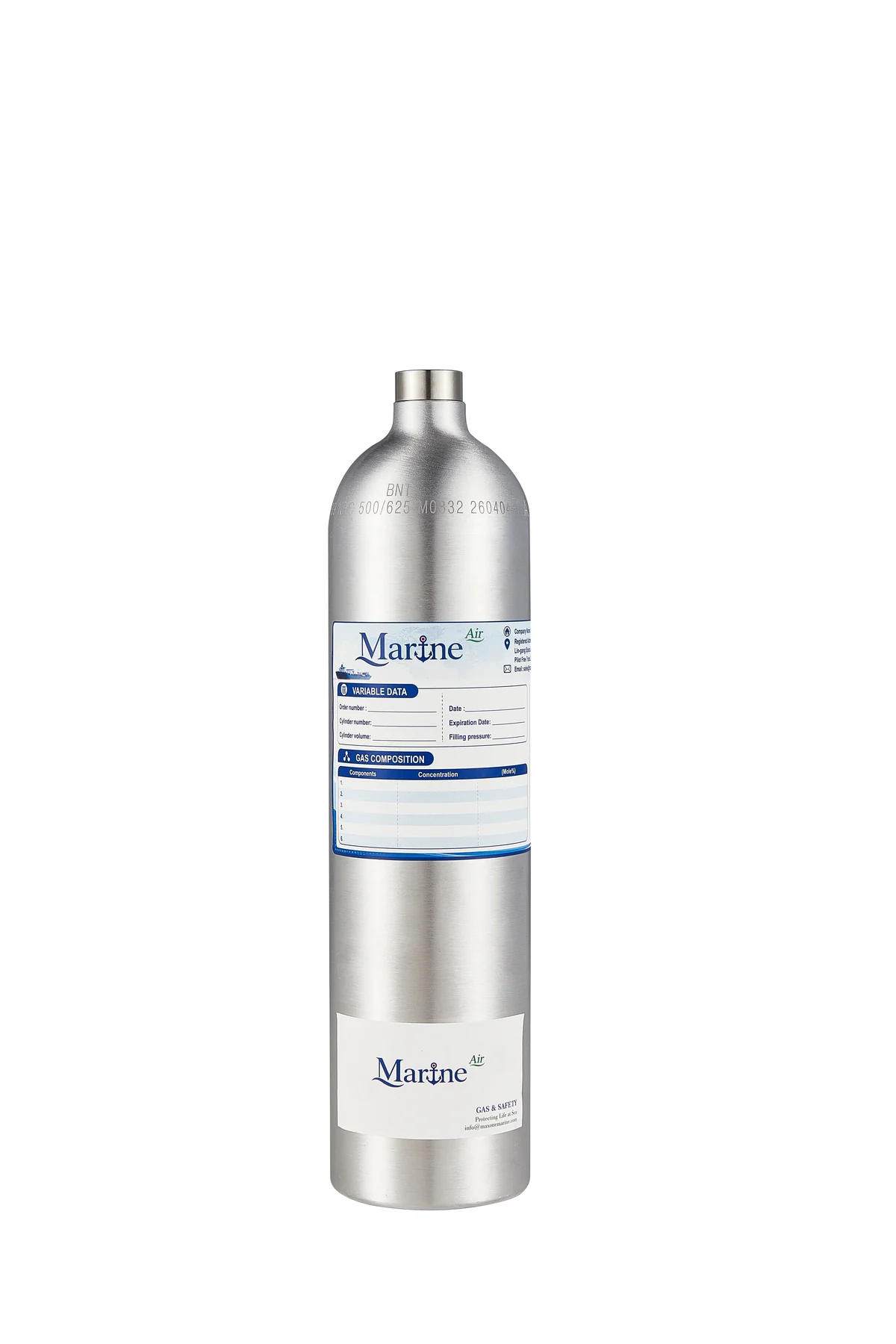

Portable cylinder range
Three practical formats for onboard detector calibration
| Model | Material | Gas capacity | Service pressure | Dimensions | Weight | Connection | Refill |
|---|---|---|---|---|---|---|---|
| 10AL | Aluminium | 112 L | 70 bar / 1000 psi | 360 x 90 mm | 1.0 kg | C10 / 715 | Non-refillable |
| 8AL | Aluminium | 58 L | 35 bar / 500 psi | 362 x 89 mm | 0.73 kg | C10 / 715 | Non-refillable |
| 7HP | Steel | 34 L | 34 bar / 494 psi | 279 x 76 mm | 0.68 kg | CGA 600 / 713 | Non-refillable |
10AL and 8AL are available globally. 7HP is supplied globally except Europe.
Gas and filling capability
From routine detector mixtures to project-confirmed supply
Common gas options
LEL, O2, CO, H2S, CO2, SO2, NO2, NH3, H2, N2
Mixture routes
Single gas, common multi-gas blends, zero air and balance nitrogen.

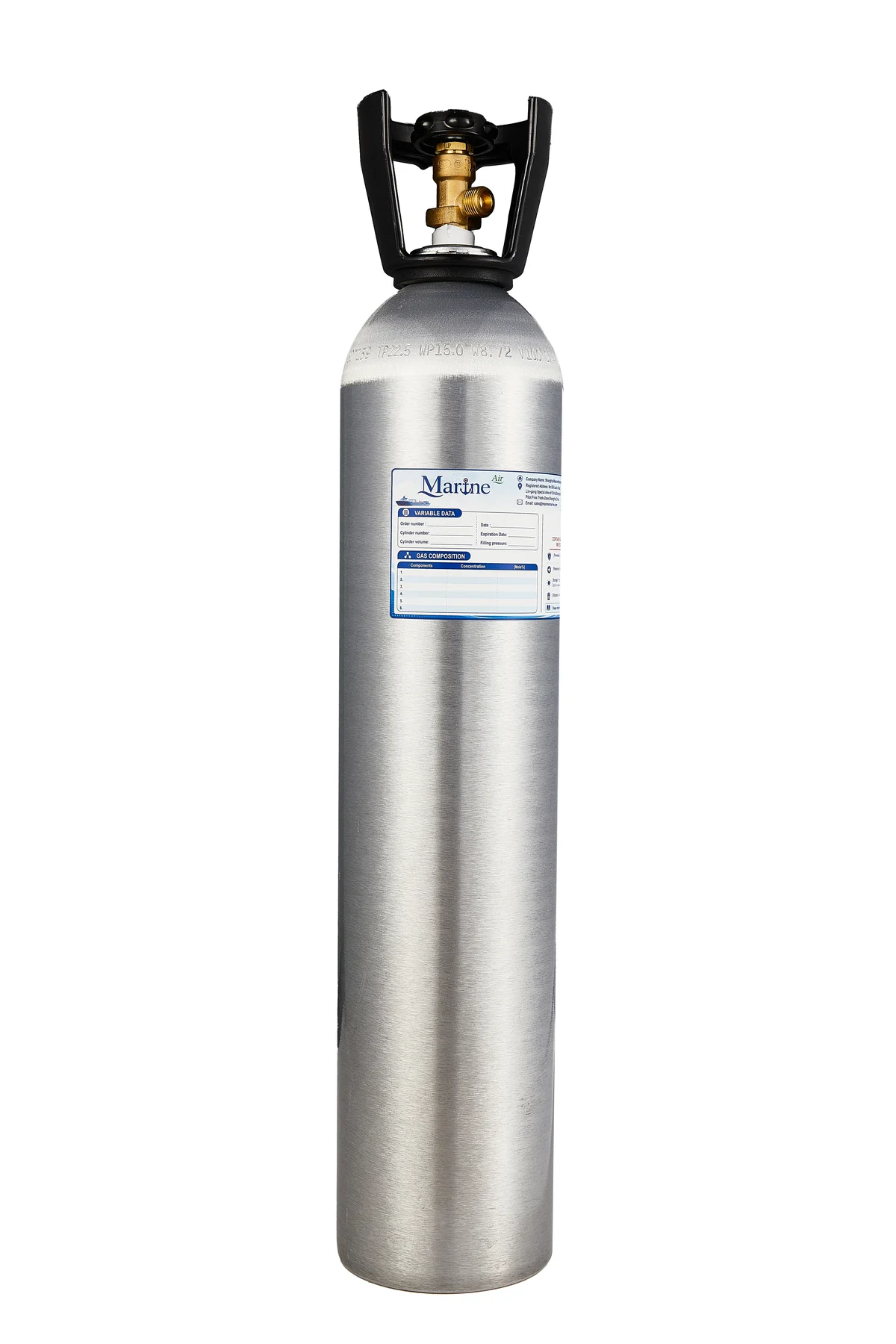

Refillable cylinder sizes
2 L · 4 L · 8 L · 10 L · 20 L · 40 L · 47 L · 50 L
Applications
Portable and fixed detectors, enclosed-space checks, onboard service and shipyard inspection.
Order checklist
Four details help us confirm the correct supply route
Gas and concentration
List each component, target concentration and balance gas.
Cylinder and pressure
State the required cylinder size, valve connection and filling pressure.
Instrument and regulator
Send the detector model and required flow so regulator compatibility can be checked.
Documents and destination
Confirm certificate, SDS, labeling, delivery destination and any transport restrictions.
Regulator selection must be confirmed against the gas, connection, required flow and detector specification.
Product documents
